Aluminum Oxide

Molecular Structure

Molecular Details

Molecular Formula	Al₂O₃
Molecular Weight	101.96 g/mol
State	Solid at standard conditions

Olefinverbund Integration

Chemistry & Engineering

Reaction Equation	Bayer Process: Digestion -> Precipitation -> Calcination
Thermodynamics	Endothermic calcination
Catalyst System	None
Reactor Class	Autoclave digester / Rotary kiln
Process Considerations	Red mud waste management is key challenge.

Extraterrestrial Production Pattern

1. Bayer process: bauxite + NaOH → sodium aluminate → Al(OH)₃ → Al₂O₃
2. Lunar anorthosite (CaAl₂Si₂O₈) requires modified extraction
3. Calcination at 1000-1200°C
4. Fused or sintered for different applications

Applications

• Aluminum metal production (Hall-Héroult)
• Abrasives and grinding
• Refractory linings
• Catalyst supports

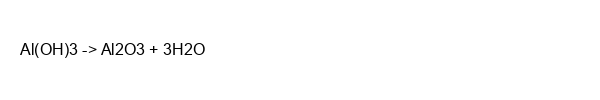

Reaction Diagram

Overall Reaction: Al(OH)3 -> Al2O3 + 3H2O

Unit Operations

Process steps following chemical engineering unit operation principles:

Step	Operation	Description
1	Bauxite Digestion	Dissolve in NaOH at 150-250°C (Bayer process)
2	Red Mud Separation	Filter/settle insoluble residue
3	Precipitation	Precipitate Al(OH)₃ by cooling/seeding
4	Filtration	Separate Al(OH)₃ crystals
5	Calcination	Heat to 1050-1200°C for α-Al₂O₃
6	Cooling	Cool product in rotary cooler

S88 Batch Control Model

This module follows the ISA-88 (S88) batch control standard. Below is a simplified BatchML schema for educational purposes:

<?xml version="1.0" encoding="UTF-8"?>
<!-- ISA-88 Batch Control Model for Aluminum Oxide -->
<!-- Educational schema - simplified for demonstration -->
<BatchML xmlns="http://www.wbf.org/xml/B2MML-V0600">

  <ProcessCell ID="ALUMINA_BAYER_CELL">
    <Description>Process cell for Aluminum Oxide production</Description>

    <Unit ID="ALUMINA_BAYER">
      <Description>Main synthesis unit</Description>

      <!-- Equipment Modules -->
      <EquipmentModule ID="DIGESTER">
        <Description>Digester</Description>
      </EquipmentModule>
      <EquipmentModule ID="SETTLER">
        <Description>Settler</Description>
      </EquipmentModule>
      <EquipmentModule ID="PRECIPITATOR">
        <Description>Precipitator</Description>
      </EquipmentModule>
      <EquipmentModule ID="FILTER">
        <Description>Filter</Description>
      </EquipmentModule>
      <EquipmentModule ID="ROTARY_KILN">
        <Description>Rotary Kiln</Description>
      </EquipmentModule>
      <EquipmentModule ID="COOLER">
        <Description>Cooler</Description>
      </EquipmentModule>
    </Unit>
  </ProcessCell>

  <MasterRecipe ID="ALUMINA_BAYER_RECIPE">
    <Description>Master recipe for Aluminum Oxide</Description>
    <ProductID>ALUMINUM_OXIDE</ProductID>

    <UnitProcedure ID="ALUMINA_BAYER_UP">
      <Description>Unit procedure for synthesis</Description>

      <Operation ID="OP_01">
        <Description>Operation 1</Description>
        <Phase ID="DIGEST">
          <Description>Digest phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_02">
        <Description>Operation 2</Description>
        <Phase ID="CLARIFY">
          <Description>Clarify phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_03">
        <Description>Operation 3</Description>
        <Phase ID="PRECIPITATE">
          <Description>Precipitate phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_04">
        <Description>Operation 4</Description>
        <Phase ID="FILTER">
          <Description>Filter phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_05">
        <Description>Operation 5</Description>
        <Phase ID="CALCINE">
          <Description>Calcine phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_06">
        <Description>Operation 6</Description>
        <Phase ID="COOL">
          <Description>Cool phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>
    </UnitProcedure>
  </MasterRecipe>

</BatchML>

**Key S88 Concepts:**
- **Process Cell**: The physical grouping containing all equipment for this process
- **Unit**: The major equipment that performs the synthesis
- **Equipment Modules**: Individual pieces of equipment (reactors, columns, etc.)
- **Unit Procedure**: The sequence of operations to produce the product
- **Phases**: The lowest level of procedural control (e.g., REACT, SEPARATE, PURIFY)

Key S88 Concepts:
• Process Cell: Physical grouping containing all equipment
• Unit: Major equipment performing synthesis
• Equipment Modules: Individual pieces (reactors, columns, etc.)
• Phases: Lowest level of procedural control (REACT, SEPARATE, etc.)

---

This Synthesis Module is part of the 100chemicals Olefinverbund — an integrated chemical production network designed for extraterrestrial civilization on Moon and Mars.
