Diethyl Ether

C₂H₅OC₂H₅ · 74.12 g/mol

C₂H₅OC₂H₅

Solvent and extraction medium

Molecular Weight

74.12 g/mol

State

Liquid

Catalyst

Sulfuric acid or Alumina

Reactor

Dehydration reactor

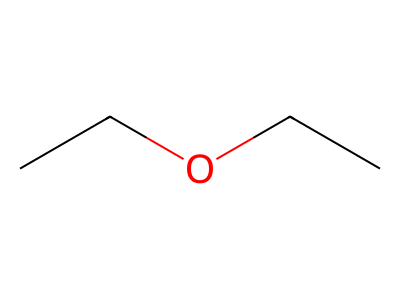

Diethyl Ether molecular structure — 2D structure

Olefinverbund Integration

Inputs

Ethanol

→

Product

Diethyl Ether

→

Outputs

Solvent

Chemistry & Engineering

Reaction	`2 C₂H₅OH → (C₂H₅)₂O + H₂O`
Thermodynamics	Endothermic dehydration
Catalyst	Sulfuric acid or Alumina
Reactor class	Dehydration reactor
Note	Historical anesthetic; byproduct of ethanol hydration.

Applications

Laboratory solvent
Extraction medium
Starting fluid for engines
Historical anesthetic

Extraterrestrial Production Pattern

Ethanol dehydration over H₂SO₄ or solid acid at 140°C
Vapor-phase process over Al₂O₃ catalyst
Distillation and drying
Peroxide inhibitor addition for storage

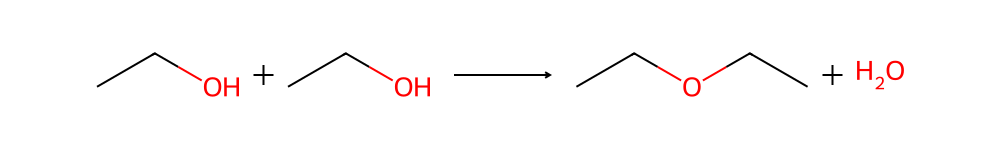

Reaction Diagram

2 C2H5OH -> (C2H5)2O + H2O

Unit Operations

Process steps following chemical engineering unit operation principles

#	Operation	Description
1	Ethanol Feed	Pump ethanol to dehydration reactor
2	Dehydration	Al₂O₃ or H₂SO₄ catalyst at 130-140°C
3	Neutralization	Neutralize residual acid if used
4	Water Separation	Phase separate or distill water
5	Ether Distillation	Distill to >99.5% ether
6	Peroxide Removal	Remove peroxides before storage

S88 Batch Control Model

ISA-88 BatchML schema — simplified for educational purposes

<?xml version="1.0" encoding="UTF-8"?>
<!-- ISA-88 Batch Control Model for Diethyl Ether -->
<!-- Educational schema - simplified for demonstration -->
<BatchML xmlns="http://www.wbf.org/xml/B2MML-V0600">

  <ProcessCell ID="DIETHYL_ETHER_PLANT_CELL">
    <Description>Process cell for Diethyl Ether production</Description>

    <Unit ID="DIETHYL_ETHER_PLANT">
      <Description>Main synthesis unit</Description>

      <!-- Equipment Modules -->
      <EquipmentModule ID="PUMP">
        <Description>Pump</Description>
      </EquipmentModule>
      <EquipmentModule ID="REACTOR">
        <Description>Reactor</Description>
      </EquipmentModule>
      <EquipmentModule ID="NEUTRALIZER">
        <Description>Neutralizer</Description>
      </EquipmentModule>
      <EquipmentModule ID="DECANTER">
        <Description>Decanter</Description>
      </EquipmentModule>
      <EquipmentModule ID="COLUMN">
        <Description>Column</Description>
      </EquipmentModule>
      <EquipmentModule ID="TREATMENT_SYSTEM">
        <Description>Treatment System</Description>
      </EquipmentModule>
    </Unit>
  </ProcessCell>

  <MasterRecipe ID="DIETHYL_ETHER_PLANT_RECIPE">
    <Description>Master recipe for Diethyl Ether</Description>
    <ProductID>DIETHYL_ETHER</ProductID>

    <UnitProcedure ID="DIETHYL_ETHER_PLANT_UP">
      <Description>Unit procedure for synthesis</Description>

      <Operation ID="OP_01">
        <Description>Operation 1</Description>
        <Phase ID="FEED">
          <Description>Feed phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_02">
        <Description>Operation 2</Description>
        <Phase ID="DEHYDRATE">
          <Description>Dehydrate phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_03">
        <Description>Operation 3</Description>
        <Phase ID="NEUTRALIZE">
          <Description>Neutralize phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_04">
        <Description>Operation 4</Description>
        <Phase ID="SEPARATE">
          <Description>Separate phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_05">
        <Description>Operation 5</Description>
        <Phase ID="DISTILL">
          <Description>Distill phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_06">
        <Description>Operation 6</Description>
        <Phase ID="TREAT">
          <Description>Treat phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>
    </UnitProcedure>
  </MasterRecipe>

</BatchML>

Process CellPhysical grouping of all production equipment

UnitMajor equipment performing the synthesis

Equipment ModulesIndividual devices: reactors, columns, absorbers

PhasesLowest control level: REACT, SEPARATE, PURIFY
