Formaldehyde

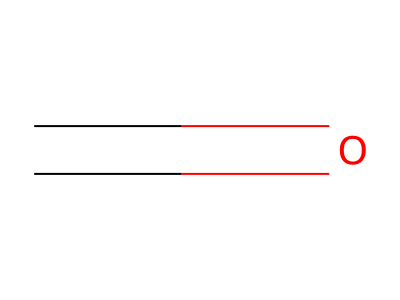

Molecular Structure

Molecular Details

Molecular Formula	CH₂O (HCHO)
Molecular Weight	30.03 g/mol
State	Gas (typically handled as aqueous solution)

Olefinverbund Integration

Chemistry & Engineering

Reaction Equation	CH₃OH + 0.5 O₂ → HCHO + H₂O
Thermodynamics	Exothermic oxidation
Catalyst System	Silver crystals (lean) or Iron-Molybdate (excess air)
Reactor Class	Shallow bed adiabatic (Ag) or Tubular fixed bed (Oxide)
Process Considerations	Product handled as aqueous formalin (37%).

Extraterrestrial Production Pattern

1. Silver catalyst process: methanol dehydrogenation at 600-720°C
2. Metal oxide process: methanol oxidation over Fe-Mo oxide at 300-400°C
3. Absorption in water to form formalin (37% solution)
4. Stabilization with methanol to prevent polymerization

Applications

• Urea-formaldehyde resins
• Phenol-formaldehyde resins (Bakelite)
• Melamine resins
• Polyoxymethylene (POM) engineering plastic

Reaction Diagram

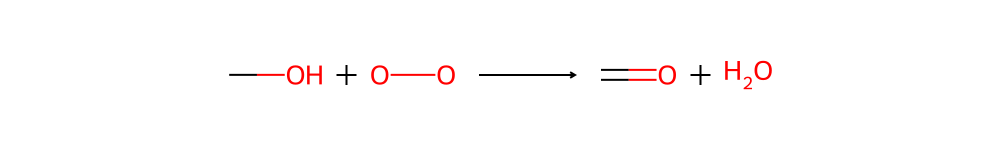

Overall Reaction: CH3OH + 1/2 O2 -> CH2O + H2O

Unit Operations

Process steps following chemical engineering unit operation principles:

Step	Operation	Description
1	Methanol Vaporization	Vaporize methanol and mix with air
2	Silver Catalyst Process	Oxidation over Ag crystals at 600-720°C
3	Quenching	Rapid cooling of reactor effluent
4	Absorption	Absorb formaldehyde in water (formalin 37%)
5	Methanol Recovery	Distill to recover unreacted methanol
6	Stabilization	Add methanol stabilizer to prevent polymerization

S88 Batch Control Model

This module follows the ISA-88 (S88) batch control standard. Below is a simplified BatchML schema for educational purposes:

<?xml version="1.0" encoding="UTF-8"?>
<!-- ISA-88 Batch Control Model for Formaldehyde -->
<!-- Educational schema - simplified for demonstration -->
<BatchML xmlns="http://www.wbf.org/xml/B2MML-V0600">

  <ProcessCell ID="FORMALDEHYDE_PLANT_CELL">
    <Description>Process cell for Formaldehyde production</Description>

    <Unit ID="FORMALDEHYDE_PLANT">
      <Description>Main synthesis unit</Description>

      <!-- Equipment Modules -->
      <EquipmentModule ID="VAPORIZER">
        <Description>Vaporizer</Description>
      </EquipmentModule>
      <EquipmentModule ID="REACTOR">
        <Description>Reactor</Description>
      </EquipmentModule>
      <EquipmentModule ID="QUENCHER">
        <Description>Quencher</Description>
      </EquipmentModule>
      <EquipmentModule ID="ABSORBER">
        <Description>Absorber</Description>
      </EquipmentModule>
      <EquipmentModule ID="DISTILLATION">
        <Description>Distillation</Description>
      </EquipmentModule>
      <EquipmentModule ID="STORAGE">
        <Description>Storage</Description>
      </EquipmentModule>
    </Unit>
  </ProcessCell>

  <MasterRecipe ID="FORMALDEHYDE_PLANT_RECIPE">
    <Description>Master recipe for Formaldehyde</Description>
    <ProductID>FORMALDEHYDE</ProductID>

    <UnitProcedure ID="FORMALDEHYDE_PLANT_UP">
      <Description>Unit procedure for synthesis</Description>

      <Operation ID="OP_01">
        <Description>Operation 1</Description>
        <Phase ID="VAPORIZE">
          <Description>Vaporize phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_02">
        <Description>Operation 2</Description>
        <Phase ID="OXIDIZE">
          <Description>Oxidize phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_03">
        <Description>Operation 3</Description>
        <Phase ID="QUENCH">
          <Description>Quench phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_04">
        <Description>Operation 4</Description>
        <Phase ID="ABSORB">
          <Description>Absorb phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_05">
        <Description>Operation 5</Description>
        <Phase ID="RECOVER">
          <Description>Recover phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_06">
        <Description>Operation 6</Description>
        <Phase ID="STABILIZE">
          <Description>Stabilize phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>
    </UnitProcedure>
  </MasterRecipe>

</BatchML>

**Key S88 Concepts:**
- **Process Cell**: The physical grouping containing all equipment for this process
- **Unit**: The major equipment that performs the synthesis
- **Equipment Modules**: Individual pieces of equipment (reactors, columns, etc.)
- **Unit Procedure**: The sequence of operations to produce the product
- **Phases**: The lowest level of procedural control (e.g., REACT, SEPARATE, PURIFY)

Key S88 Concepts:
• Process Cell: Physical grouping containing all equipment
• Unit: Major equipment performing synthesis
• Equipment Modules: Individual pieces (reactors, columns, etc.)
• Phases: Lowest level of procedural control (REACT, SEPARATE, etc.)

---

This Synthesis Module is part of the 100chemicals Olefinverbund — an integrated chemical production network designed for extraterrestrial civilization on Moon and Mars.
