Melamine

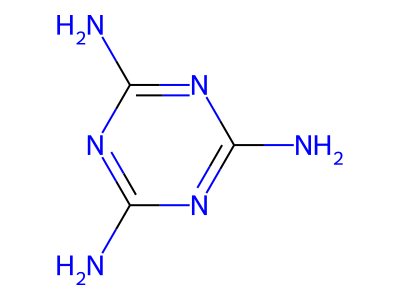

Molecular Structure

Molecular Details

Molecular Formula	C₃N₃(NH₂)₃
Molecular Weight	126.12 g/mol
State	Solid at standard conditions

Olefinverbund Integration

Chemistry & Engineering

Reaction Equation	6 Urea → Melamine + 3 CO₂ + 6 NH₃
Thermodynamics	Endothermic
Catalyst System	Alumina/Silica
Reactor Class	Fluidized bed (low pressure)
Process Considerations	Requires ammonia recycle.

Extraterrestrial Production Pattern

1. 6(NH₂)₂CO → C₃N₃(NH₂)₃ + 6NH₃ + 3CO₂
2. High-pressure process (7-10 MPa, 370-450°C)
3. Low-pressure process (0.1-1 MPa, 350-400°C)
4. Crystallization from solution

Applications

• Melamine-formaldehyde resins
• Laminates (Formica)
• Dinnerware
• Flame retardants

Reaction Diagram

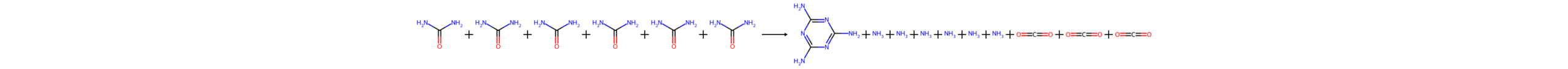

Overall Reaction: 6(NH2)2CO -> C3N3(NH2)3 + 6NH3 + 3CO2

Unit Operations

Process steps following chemical engineering unit operation principles:

Step	Operation	Description
1	Urea Melting	Melt urea in heated vessel
2	Trimerization	High pressure (7-10 MPa) at 370-400°C or low pressure at 350-400°C
3	Off-gas Recovery	Recover NH₃ and CO₂ for urea synthesis
4	Quenching	Quench melamine vapor/melt in water
5	Crystallization	Crystallize from aqueous solution
6	Drying	Dry crystals to <0.1% moisture

S88 Batch Control Model

This module follows the ISA-88 (S88) batch control standard. Below is a simplified BatchML schema for educational purposes:

<?xml version="1.0" encoding="UTF-8"?>
<!-- ISA-88 Batch Control Model for Melamine -->
<!-- Educational schema - simplified for demonstration -->
<BatchML xmlns="http://www.wbf.org/xml/B2MML-V0600">

  <ProcessCell ID="MELAMINE_PLANT_CELL">
    <Description>Process cell for Melamine production</Description>

    <Unit ID="MELAMINE_PLANT">
      <Description>Main synthesis unit</Description>

      <!-- Equipment Modules -->
      <EquipmentModule ID="MELTER">
        <Description>Melter</Description>
      </EquipmentModule>
      <EquipmentModule ID="REACTOR">
        <Description>Reactor</Description>
      </EquipmentModule>
      <EquipmentModule ID="GAS_RECOVERY">
        <Description>Gas Recovery</Description>
      </EquipmentModule>
      <EquipmentModule ID="QUENCH_TANK">
        <Description>Quench Tank</Description>
      </EquipmentModule>
      <EquipmentModule ID="CRYSTALLIZER">
        <Description>Crystallizer</Description>
      </EquipmentModule>
      <EquipmentModule ID="DRYER">
        <Description>Dryer</Description>
      </EquipmentModule>
    </Unit>
  </ProcessCell>

  <MasterRecipe ID="MELAMINE_PLANT_RECIPE">
    <Description>Master recipe for Melamine</Description>
    <ProductID>MELAMINE</ProductID>

    <UnitProcedure ID="MELAMINE_PLANT_UP">
      <Description>Unit procedure for synthesis</Description>

      <Operation ID="OP_01">
        <Description>Operation 1</Description>
        <Phase ID="MELT">
          <Description>Melt phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_02">
        <Description>Operation 2</Description>
        <Phase ID="TRIMERIZE">
          <Description>Trimerize phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_03">
        <Description>Operation 3</Description>
        <Phase ID="RECOVER_GAS">
          <Description>Recover Gas phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_04">
        <Description>Operation 4</Description>
        <Phase ID="QUENCH">
          <Description>Quench phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_05">
        <Description>Operation 5</Description>
        <Phase ID="CRYSTALLIZE">
          <Description>Crystallize phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_06">
        <Description>Operation 6</Description>
        <Phase ID="DRY">
          <Description>Dry phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>
    </UnitProcedure>
  </MasterRecipe>

</BatchML>

**Key S88 Concepts:**
- **Process Cell**: The physical grouping containing all equipment for this process
- **Unit**: The major equipment that performs the synthesis
- **Equipment Modules**: Individual pieces of equipment (reactors, columns, etc.)
- **Unit Procedure**: The sequence of operations to produce the product
- **Phases**: The lowest level of procedural control (e.g., REACT, SEPARATE, PURIFY)

Key S88 Concepts:
• Process Cell: Physical grouping containing all equipment
• Unit: Major equipment performing synthesis
• Equipment Modules: Individual pieces (reactors, columns, etc.)
• Phases: Lowest level of procedural control (REACT, SEPARATE, etc.)

---

This Synthesis Module is part of the 100chemicals Olefinverbund — an integrated chemical production network designed for extraterrestrial civilization on Moon and Mars.
