Methyl Chloride

Molecular Structure

Molecular Details

Molecular Formula	CH₃Cl
Molecular Weight	50.49 g/mol
State	Gas at standard conditions

Olefinverbund Integration

Chemistry & Engineering

Reaction Equation	CH₃OH + HCl → CH₃Cl + H₂O
Thermodynamics	Exothermic hydrochlorination
Catalyst System	Alumina or Zinc Chloride
Reactor Class	Gas phase or Liquid phase
Process Considerations	Key entry to Direct Synthesis of silicones.

Extraterrestrial Production Pattern

1. CH₃OH + HCl → CH₃Cl + H₂O (gas phase, 300-380°C)
2. Alumina or ZnCl₂ catalyst
3. Alternative: methane chlorination
4. Compression and liquefaction for storage

Applications

• Silicone production (methylchlorosilanes)
• Quaternary ammonium compounds
• Methyl cellulose production
• Agricultural chemicals

Reaction Diagram

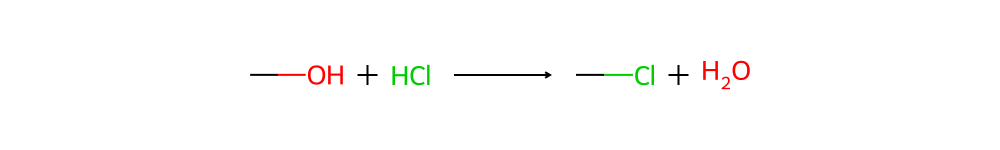

Overall Reaction: CH3OH + HCl -> CH3Cl + H2O

Unit Operations

Process steps following chemical engineering unit operation principles:

Step	Operation	Description
1	Methanol/HCl Feed	Vaporize methanol and HCl
2	Hydrochlorination	γ-Al₂O₃ catalyst at 300-380°C
3	Condensation	Condense water and heavy ends
4	Caustic Wash	Remove residual HCl and DME
5	Drying	Dry with H₂SO₄ or molecular sieve
6	Compression	Compress and liquefy for storage

S88 Batch Control Model

This module follows the ISA-88 (S88) batch control standard. Below is a simplified BatchML schema for educational purposes:

<?xml version="1.0" encoding="UTF-8"?>
<!-- ISA-88 Batch Control Model for Methyl Chloride -->
<!-- Educational schema - simplified for demonstration -->
<BatchML xmlns="http://www.wbf.org/xml/B2MML-V0600">

  <ProcessCell ID="METHYL_CHLORIDE_PLANT_CELL">
    <Description>Process cell for Methyl Chloride production</Description>

    <Unit ID="METHYL_CHLORIDE_PLANT">
      <Description>Main synthesis unit</Description>

      <!-- Equipment Modules -->
      <EquipmentModule ID="VAPORIZER">
        <Description>Vaporizer</Description>
      </EquipmentModule>
      <EquipmentModule ID="REACTOR">
        <Description>Reactor</Description>
      </EquipmentModule>
      <EquipmentModule ID="CONDENSER">
        <Description>Condenser</Description>
      </EquipmentModule>
      <EquipmentModule ID="SCRUBBER">
        <Description>Scrubber</Description>
      </EquipmentModule>
      <EquipmentModule ID="DRYER">
        <Description>Dryer</Description>
      </EquipmentModule>
      <EquipmentModule ID="COMPRESSOR">
        <Description>Compressor</Description>
      </EquipmentModule>
    </Unit>
  </ProcessCell>

  <MasterRecipe ID="METHYL_CHLORIDE_PLANT_RECIPE">
    <Description>Master recipe for Methyl Chloride</Description>
    <ProductID>METHYL_CHLORIDE</ProductID>

    <UnitProcedure ID="METHYL_CHLORIDE_PLANT_UP">
      <Description>Unit procedure for synthesis</Description>

      <Operation ID="OP_01">
        <Description>Operation 1</Description>
        <Phase ID="FEED">
          <Description>Feed phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_02">
        <Description>Operation 2</Description>
        <Phase ID="REACT">
          <Description>React phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_03">
        <Description>Operation 3</Description>
        <Phase ID="CONDENSE">
          <Description>Condense phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_04">
        <Description>Operation 4</Description>
        <Phase ID="WASH">
          <Description>Wash phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_05">
        <Description>Operation 5</Description>
        <Phase ID="DRY">
          <Description>Dry phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_06">
        <Description>Operation 6</Description>
        <Phase ID="COMPRESS">
          <Description>Compress phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>
    </UnitProcedure>
  </MasterRecipe>

</BatchML>

**Key S88 Concepts:**
- **Process Cell**: The physical grouping containing all equipment for this process
- **Unit**: The major equipment that performs the synthesis
- **Equipment Modules**: Individual pieces of equipment (reactors, columns, etc.)
- **Unit Procedure**: The sequence of operations to produce the product
- **Phases**: The lowest level of procedural control (e.g., REACT, SEPARATE, PURIFY)

Key S88 Concepts:
• Process Cell: Physical grouping containing all equipment
• Unit: Major equipment performing synthesis
• Equipment Modules: Individual pieces (reactors, columns, etc.)
• Phases: Lowest level of procedural control (REACT, SEPARATE, etc.)

---

This Synthesis Module is part of the 100chemicals Olefinverbund — an integrated chemical production network designed for extraterrestrial civilization on Moon and Mars.
