Nylon 6

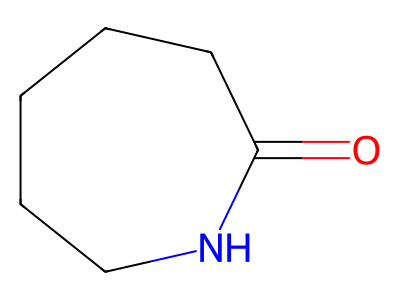

Molecular Structure

Molecular Details

Molecular Formula	[NH(CH₂)₅CO]ₙ
Molecular Weight	Variable (polymer)
State	Solid at standard conditions

Olefinverbund Integration

Chemistry & Engineering

Reaction Equation	Ring opening polymerization
Thermodynamics	Exothermic
Catalyst System	Water (hydrolytic) or Anionic
Reactor Class	VK tube (Vereinfacht Kontinuierlich)
Process Considerations	Equilibrium contains 10% monomer, requires extraction/washing.

Extraterrestrial Production Pattern

1. Caprolactam melting and water addition (catalyst)
2. Ring-opening polymerization at 250-270°C
3. Continuous or batch process
4. Chip cutting and extraction of residual monomer

Applications

• Textile fibers (hosiery, carpets)
• Engineering plastics
• Tire cord
• Films and packaging

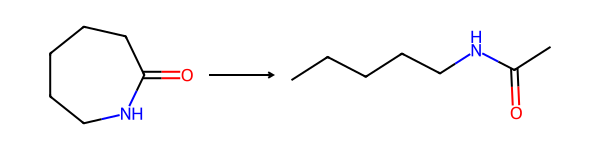

Reaction Diagram

Overall Reaction: n C6H11NO -> [-NH(CH2)5CO-]n

Unit Operations

Process steps following chemical engineering unit operation principles:

Step	Operation	Description
1	Caprolactam Melting	Melt caprolactam at 70°C
2	Polymerization	Hydrolytic polymerization at 250-270°C
3	Extraction	Extract monomer/oligomer with hot water
4	Drying	Dry chips to <0.03% moisture
5	Solid-State Polymerization	Optionally increase MW in SSP
6	Spinning	Melt spin into fiber or extrude

S88 Batch Control Model

This module follows the ISA-88 (S88) batch control standard. Below is a simplified BatchML schema for educational purposes:

<?xml version="1.0" encoding="UTF-8"?>
<!-- ISA-88 Batch Control Model for Nylon 6 -->
<!-- Educational schema - simplified for demonstration -->
<BatchML xmlns="http://www.wbf.org/xml/B2MML-V0600">

  <ProcessCell ID="NYLON6_PLANT_CELL">
    <Description>Process cell for Nylon 6 production</Description>

    <Unit ID="NYLON6_PLANT">
      <Description>Main synthesis unit</Description>

      <!-- Equipment Modules -->
      <EquipmentModule ID="MELTER">
        <Description>Melter</Description>
      </EquipmentModule>
      <EquipmentModule ID="AUTOCLAVE">
        <Description>Autoclave</Description>
      </EquipmentModule>
      <EquipmentModule ID="EXTRACTOR">
        <Description>Extractor</Description>
      </EquipmentModule>
      <EquipmentModule ID="DRYER">
        <Description>Dryer</Description>
      </EquipmentModule>
      <EquipmentModule ID="SSP_REACTOR">
        <Description>Ssp Reactor</Description>
      </EquipmentModule>
      <EquipmentModule ID="SPINNING">
        <Description>Spinning</Description>
      </EquipmentModule>
    </Unit>
  </ProcessCell>

  <MasterRecipe ID="NYLON6_PLANT_RECIPE">
    <Description>Master recipe for Nylon 6</Description>
    <ProductID>NYLON_6</ProductID>

    <UnitProcedure ID="NYLON6_PLANT_UP">
      <Description>Unit procedure for synthesis</Description>

      <Operation ID="OP_01">
        <Description>Operation 1</Description>
        <Phase ID="MELT">
          <Description>Melt phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_02">
        <Description>Operation 2</Description>
        <Phase ID="POLYMERIZE">
          <Description>Polymerize phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_03">
        <Description>Operation 3</Description>
        <Phase ID="EXTRACT">
          <Description>Extract phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_04">
        <Description>Operation 4</Description>
        <Phase ID="DRY">
          <Description>Dry phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_05">
        <Description>Operation 5</Description>
        <Phase ID="SSP">
          <Description>Ssp phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_06">
        <Description>Operation 6</Description>
        <Phase ID="SPIN">
          <Description>Spin phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>
    </UnitProcedure>
  </MasterRecipe>

</BatchML>

**Key S88 Concepts:**
- **Process Cell**: The physical grouping containing all equipment for this process
- **Unit**: The major equipment that performs the synthesis
- **Equipment Modules**: Individual pieces of equipment (reactors, columns, etc.)
- **Unit Procedure**: The sequence of operations to produce the product
- **Phases**: The lowest level of procedural control (e.g., REACT, SEPARATE, PURIFY)

Key S88 Concepts:
• Process Cell: Physical grouping containing all equipment
• Unit: Major equipment performing synthesis
• Equipment Modules: Individual pieces (reactors, columns, etc.)
• Phases: Lowest level of procedural control (REACT, SEPARATE, etc.)

---

This Synthesis Module is part of the 100chemicals Olefinverbund — an integrated chemical production network designed for extraterrestrial civilization on Moon and Mars.
