Pmma

Molecular Structure

Molecular Details

Molecular Formula	[CH₂C(CH₃)(COOCH₃)]ₙ
Molecular Weight	Variable (polymer)
State	Solid at standard conditions

Olefinverbund Integration

Chemistry & Engineering

Reaction Equation	Free radical polymerization
Thermodynamics	Exothermic
Catalyst System	Azo compounds or Peroxides
Reactor Class	Cast sheet (batch) or extrusion
Process Considerations	High optical clarity (‚Acrylic Glass‘).

Extraterrestrial Production Pattern

1. MMA purification and inhibitor removal
2. Bulk or suspension polymerization
3. Thermal or peroxide initiation at 60-100°C
4. Cast sheet or extrusion/injection molding grades

Applications

• Windows and skylights (aircraft, buildings)
• Lighting fixtures
• Signage and displays
• Medical devices and dental materials

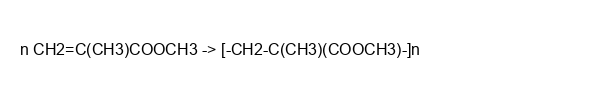

Reaction Diagram

Overall Reaction: n CH2=C(CH3)COOCH3 -> [-CH2-C(CH3)(COOCH3)-]n

Unit Operations

Process steps following chemical engineering unit operation principles:

Step	Operation	Description
1	MMA Purification	Remove inhibitor, add fresh initiator
2	Bulk Polymerization	Heat at 80-100°C with AIBN initiator
3	Syrup Stage	Partial polymerization to syrup (15-30%)
4	Sheet Casting	Cast between glass plates, cure at 60°C
5	Annealing	Heat treat to relieve stress
6	Finishing	Cut, polish to specification

S88 Batch Control Model

This module follows the ISA-88 (S88) batch control standard. Below is a simplified BatchML schema for educational purposes:

<?xml version="1.0" encoding="UTF-8"?>
<!-- ISA-88 Batch Control Model for Pmma -->
<!-- Educational schema - simplified for demonstration -->
<BatchML xmlns="http://www.wbf.org/xml/B2MML-V0600">

  <ProcessCell ID="PMMA_PLANT_CELL">
    <Description>Process cell for Pmma production</Description>

    <Unit ID="PMMA_PLANT">
      <Description>Main synthesis unit</Description>

      <!-- Equipment Modules -->
      <EquipmentModule ID="PURIFIER">
        <Description>Purifier</Description>
      </EquipmentModule>
      <EquipmentModule ID="PREPOLYMERIZER">
        <Description>Prepolymerizer</Description>
      </EquipmentModule>
      <EquipmentModule ID="SYRUP_TANK">
        <Description>Syrup Tank</Description>
      </EquipmentModule>
      <EquipmentModule ID="CASTING_CELL">
        <Description>Casting Cell</Description>
      </EquipmentModule>
      <EquipmentModule ID="OVEN">
        <Description>Oven</Description>
      </EquipmentModule>
      <EquipmentModule ID="FINISHING">
        <Description>Finishing</Description>
      </EquipmentModule>
    </Unit>
  </ProcessCell>

  <MasterRecipe ID="PMMA_PLANT_RECIPE">
    <Description>Master recipe for Pmma</Description>
    <ProductID>PMMA</ProductID>

    <UnitProcedure ID="PMMA_PLANT_UP">
      <Description>Unit procedure for synthesis</Description>

      <Operation ID="OP_01">
        <Description>Operation 1</Description>
        <Phase ID="PURIFY">
          <Description>Purify phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_02">
        <Description>Operation 2</Description>
        <Phase ID="INIT_POLY">
          <Description>Init Poly phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_03">
        <Description>Operation 3</Description>
        <Phase ID="SYRUP">
          <Description>Syrup phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_04">
        <Description>Operation 4</Description>
        <Phase ID="CAST">
          <Description>Cast phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_05">
        <Description>Operation 5</Description>
        <Phase ID="ANNEAL">
          <Description>Anneal phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_06">
        <Description>Operation 6</Description>
        <Phase ID="FINISH">
          <Description>Finish phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>
    </UnitProcedure>
  </MasterRecipe>

</BatchML>

**Key S88 Concepts:**
- **Process Cell**: The physical grouping containing all equipment for this process
- **Unit**: The major equipment that performs the synthesis
- **Equipment Modules**: Individual pieces of equipment (reactors, columns, etc.)
- **Unit Procedure**: The sequence of operations to produce the product
- **Phases**: The lowest level of procedural control (e.g., REACT, SEPARATE, PURIFY)

Key S88 Concepts:
• Process Cell: Physical grouping containing all equipment
• Unit: Major equipment performing synthesis
• Equipment Modules: Individual pieces (reactors, columns, etc.)
• Phases: Lowest level of procedural control (REACT, SEPARATE, etc.)

---

This Synthesis Module is part of the 100chemicals Olefinverbund — an integrated chemical production network designed for extraterrestrial civilization on Moon and Mars.
