Polydimethylsiloxane

Molecular Structure

Molecular Details

Molecular Formula	[Si(CH₃)₂O]ₙ
Molecular Weight	Variable (polymer)
State	Liquid to solid (varies with MW)

Olefinverbund Integration

Chemistry & Engineering

Reaction Equation	Rochow Process (Direct Synthesis) -> Hydrolysis
Thermodynamics	Exothermic
Catalyst System	Copper
Reactor Class	Fluidized bed
Process Considerations	Backbone is Si-O, not C-C. High thermal stability.

Extraterrestrial Production Pattern

1. Si + CH₃Cl → (CH₃)₂SiCl₂ (direct process, Cu catalyst)
2. Hydrolysis: (CH₃)₂SiCl₂ + H₂O → siloxane oligomers
3. Condensation polymerization with acid/base catalyst
4. Equilibration for specific MW distribution

Applications

• Sealants and caulks
• Lubricants and hydraulic fluids
• Medical implants
• Mold release agents

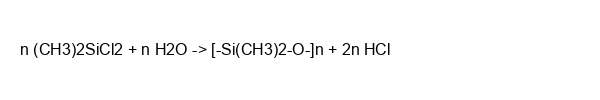

Reaction Diagram

Overall Reaction: n (CH3)2SiCl2 + n H2O -> [-Si(CH3)2-O-]n + 2n HCl

Unit Operations

Process steps following chemical engineering unit operation principles:

Step	Operation	Description
1	Chlorosilane Hydrolysis	Hydrolyze dimethyldichlorosilane
2	Neutralization	Neutralize HCl with NaOH
3	Cyclics Formation	Form cyclic siloxanes (D3, D4, D5)
4	Ring-Opening Polymerization	Polymerize with acid/base catalyst
5	End-Capping	Add end-groups for desired properties
6	Stripping	Remove volatiles under vacuum

S88 Batch Control Model

This module follows the ISA-88 (S88) batch control standard. Below is a simplified BatchML schema for educational purposes:

<?xml version="1.0" encoding="UTF-8"?>
<!-- ISA-88 Batch Control Model for Polydimethylsiloxane -->
<!-- Educational schema - simplified for demonstration -->
<BatchML xmlns="http://www.wbf.org/xml/B2MML-V0600">

  <ProcessCell ID="PDMS_PLANT_CELL">
    <Description>Process cell for Polydimethylsiloxane production</Description>

    <Unit ID="PDMS_PLANT">
      <Description>Main synthesis unit</Description>

      <!-- Equipment Modules -->
      <EquipmentModule ID="HYDROLYZER">
        <Description>Hydrolyzer</Description>
      </EquipmentModule>
      <EquipmentModule ID="NEUTRALIZER">
        <Description>Neutralizer</Description>
      </EquipmentModule>
      <EquipmentModule ID="CYCLICS_STILL">
        <Description>Cyclics Still</Description>
      </EquipmentModule>
      <EquipmentModule ID="POLYMERIZER">
        <Description>Polymerizer</Description>
      </EquipmentModule>
      <EquipmentModule ID="END_CAPPER">
        <Description>End Capper</Description>
      </EquipmentModule>
      <EquipmentModule ID="STRIPPER">
        <Description>Stripper</Description>
      </EquipmentModule>
    </Unit>
  </ProcessCell>

  <MasterRecipe ID="PDMS_PLANT_RECIPE">
    <Description>Master recipe for Polydimethylsiloxane</Description>
    <ProductID>POLYDIMETHYLSILOXANE</ProductID>

    <UnitProcedure ID="PDMS_PLANT_UP">
      <Description>Unit procedure for synthesis</Description>

      <Operation ID="OP_01">
        <Description>Operation 1</Description>
        <Phase ID="HYDROLYZE">
          <Description>Hydrolyze phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_02">
        <Description>Operation 2</Description>
        <Phase ID="NEUTRALIZE">
          <Description>Neutralize phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_03">
        <Description>Operation 3</Description>
        <Phase ID="CYCLIZE">
          <Description>Cyclize phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_04">
        <Description>Operation 4</Description>
        <Phase ID="POLYMERIZE">
          <Description>Polymerize phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_05">
        <Description>Operation 5</Description>
        <Phase ID="END_CAP">
          <Description>End Cap phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_06">
        <Description>Operation 6</Description>
        <Phase ID="STRIP">
          <Description>Strip phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>
    </UnitProcedure>
  </MasterRecipe>

</BatchML>

**Key S88 Concepts:**
- **Process Cell**: The physical grouping containing all equipment for this process
- **Unit**: The major equipment that performs the synthesis
- **Equipment Modules**: Individual pieces of equipment (reactors, columns, etc.)
- **Unit Procedure**: The sequence of operations to produce the product
- **Phases**: The lowest level of procedural control (e.g., REACT, SEPARATE, PURIFY)

Key S88 Concepts:
• Process Cell: Physical grouping containing all equipment
• Unit: Major equipment performing synthesis
• Equipment Modules: Individual pieces (reactors, columns, etc.)
• Phases: Lowest level of procedural control (REACT, SEPARATE, etc.)

---

This Synthesis Module is part of the 100chemicals Olefinverbund — an integrated chemical production network designed for extraterrestrial civilization on Moon and Mars.
