Silicone

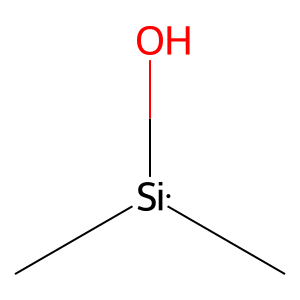

Molecular Structure

Molecular Details

Molecular Formula	[R₂SiO]ₙ (typically R = CH₃)
Molecular Weight	Variable (polymer)
State	Liquid, gel, or solid

Olefinverbund Integration

Chemistry & Engineering

Reaction Equation	Rochow Process (Direct Synthesis) -> Hydrolysis
Thermodynamics	Exothermic
Catalyst System	Copper
Reactor Class	Fluidized bed
Process Considerations	Backbone is Si-O, not C-C. High thermal stability.

Extraterrestrial Production Pattern

1. Silicon + methyl chloride → methylchlorosilanes (Rochow process)
2. Hydrolysis of dimethyldichlorosilane
3. Condensation polymerization to polysiloxane
4. Crosslinking for elastomers and resins

Applications

• Sealants and caulks
• Medical implants and devices
• High-temperature lubricants
• Electronics potting and encapsulation

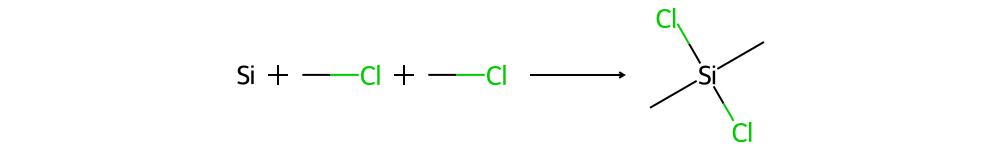

Reaction Diagram

Overall Reaction: Si + 2CH3Cl -> (CH3)2SiCl2 (Direct process)

Unit Operations

Process steps following chemical engineering unit operation principles:

Step	Operation	Description
1	Silicon/Catalyst Prep	Prepare silicon-copper powder mix
2	Müller-Rochow Reaction	React with CH₃Cl at 250-350°C
3	Chlorosilane Distillation	Fractionate to separate silanes
4	Hydrolysis	Hydrolyze to siloxanes
5	Polymerization	Polymerize to desired MW
6	Formulation	Compound with fillers and catalysts

S88 Batch Control Model

This module follows the ISA-88 (S88) batch control standard. Below is a simplified BatchML schema for educational purposes:

<?xml version="1.0" encoding="UTF-8"?>
<!-- ISA-88 Batch Control Model for Silicone -->
<!-- Educational schema - simplified for demonstration -->
<BatchML xmlns="http://www.wbf.org/xml/B2MML-V0600">

  <ProcessCell ID="SILICONE_PLANT_CELL">
    <Description>Process cell for Silicone production</Description>

    <Unit ID="SILICONE_PLANT">
      <Description>Main synthesis unit</Description>

      <!-- Equipment Modules -->
      <EquipmentModule ID="MIXER">
        <Description>Mixer</Description>
      </EquipmentModule>
      <EquipmentModule ID="FLUIDIZED_BED">
        <Description>Fluidized Bed</Description>
      </EquipmentModule>
      <EquipmentModule ID="DISTILLATION">
        <Description>Distillation</Description>
      </EquipmentModule>
      <EquipmentModule ID="HYDROLYZER">
        <Description>Hydrolyzer</Description>
      </EquipmentModule>
      <EquipmentModule ID="POLYMERIZER">
        <Description>Polymerizer</Description>
      </EquipmentModule>
      <EquipmentModule ID="COMPOUNDER">
        <Description>Compounder</Description>
      </EquipmentModule>
    </Unit>
  </ProcessCell>

  <MasterRecipe ID="SILICONE_PLANT_RECIPE">
    <Description>Master recipe for Silicone</Description>
    <ProductID>SILICONE</ProductID>

    <UnitProcedure ID="SILICONE_PLANT_UP">
      <Description>Unit procedure for synthesis</Description>

      <Operation ID="OP_01">
        <Description>Operation 1</Description>
        <Phase ID="PREP">
          <Description>Prep phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_02">
        <Description>Operation 2</Description>
        <Phase ID="DIRECT_REACT">
          <Description>Direct React phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_03">
        <Description>Operation 3</Description>
        <Phase ID="DISTILL">
          <Description>Distill phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_04">
        <Description>Operation 4</Description>
        <Phase ID="HYDROLYZE">
          <Description>Hydrolyze phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_05">
        <Description>Operation 5</Description>
        <Phase ID="POLYMERIZE">
          <Description>Polymerize phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_06">
        <Description>Operation 6</Description>
        <Phase ID="FORMULATE">
          <Description>Formulate phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>
    </UnitProcedure>
  </MasterRecipe>

</BatchML>

**Key S88 Concepts:**
- **Process Cell**: The physical grouping containing all equipment for this process
- **Unit**: The major equipment that performs the synthesis
- **Equipment Modules**: Individual pieces of equipment (reactors, columns, etc.)
- **Unit Procedure**: The sequence of operations to produce the product
- **Phases**: The lowest level of procedural control (e.g., REACT, SEPARATE, PURIFY)

Key S88 Concepts:
• Process Cell: Physical grouping containing all equipment
• Unit: Major equipment performing synthesis
• Equipment Modules: Individual pieces (reactors, columns, etc.)
• Phases: Lowest level of procedural control (REACT, SEPARATE, etc.)

---

This Synthesis Module is part of the 100chemicals Olefinverbund — an integrated chemical production network designed for extraterrestrial civilization on Moon and Mars.
