Sodium Sulfate

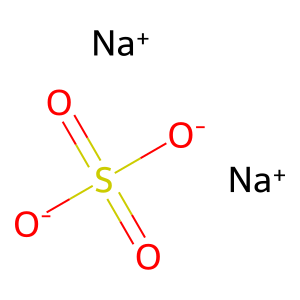

Molecular Structure

Molecular Details

Molecular Formula	Na₂SO₄
Molecular Weight	142.04 g/mol
State	Solid at standard conditions

Olefinverbund Integration

Chemistry & Engineering

Reaction Equation	2NaCl + H₂SO₄ → Na₂SO₄ + 2HCl
Thermodynamics	Endothermic (Mannheim)
Catalyst System	None
Reactor Class	Mannheim Furnace
Process Considerations	HCl byproduct is valuable.

Extraterrestrial Production Pattern

1. Mannheim: 2NaCl + H₂SO₄ → Na₂SO₄ + 2HCl
2. Natural deposits (mirabilite, thenardite)
3. Byproduct of various chemical processes
4. Crystallization and drying

Applications

• Detergent and soap filler
• Glass manufacturing flux
• Kraft paper pulping
• Textile dyeing

Reaction Diagram

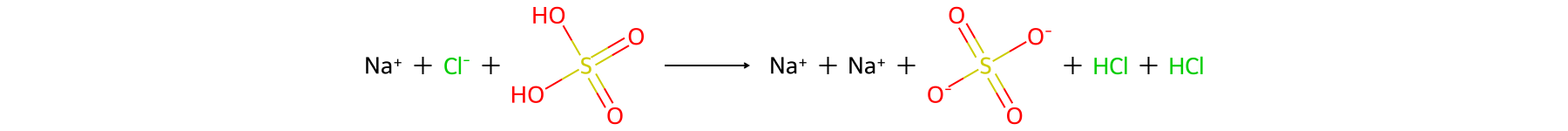

Overall Reaction: NaCl + H2SO4 -> Na2SO4 + 2HCl (Mannheim process)

Unit Operations

Process steps following chemical engineering unit operation principles:

Step	Operation	Description
1	Salt/Acid Mixing	Mix NaCl with H₂SO₄
2	Mannheim Furnace	React at 800°C in muffle furnace
3	HCl Recovery	Absorb HCl in water
4	Salt Cake Cooling	Cool sodium sulfate product
5	Grinding	Grind to specification
6	Packaging	Package in bags or bulk

S88 Batch Control Model

This module follows the ISA-88 (S88) batch control standard. Below is a simplified BatchML schema for educational purposes:

<?xml version="1.0" encoding="UTF-8"?>
<!-- ISA-88 Batch Control Model for Sodium Sulfate -->
<!-- Educational schema - simplified for demonstration -->
<BatchML xmlns="http://www.wbf.org/xml/B2MML-V0600">

  <ProcessCell ID="SODIUM_SULFATE_PLANT_CELL">
    <Description>Process cell for Sodium Sulfate production</Description>

    <Unit ID="SODIUM_SULFATE_PLANT">
      <Description>Main synthesis unit</Description>

      <!-- Equipment Modules -->
      <EquipmentModule ID="MIXER">
        <Description>Mixer</Description>
      </EquipmentModule>
      <EquipmentModule ID="MANNHEIM_FURNACE">
        <Description>Mannheim Furnace</Description>
      </EquipmentModule>
      <EquipmentModule ID="ABSORBER">
        <Description>Absorber</Description>
      </EquipmentModule>
      <EquipmentModule ID="COOLER">
        <Description>Cooler</Description>
      </EquipmentModule>
      <EquipmentModule ID="MILL">
        <Description>Mill</Description>
      </EquipmentModule>
      <EquipmentModule ID="PACKAGER">
        <Description>Packager</Description>
      </EquipmentModule>
    </Unit>
  </ProcessCell>

  <MasterRecipe ID="SODIUM_SULFATE_PLANT_RECIPE">
    <Description>Master recipe for Sodium Sulfate</Description>
    <ProductID>SODIUM_SULFATE</ProductID>

    <UnitProcedure ID="SODIUM_SULFATE_PLANT_UP">
      <Description>Unit procedure for synthesis</Description>

      <Operation ID="OP_01">
        <Description>Operation 1</Description>
        <Phase ID="MIX">
          <Description>Mix phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_02">
        <Description>Operation 2</Description>
        <Phase ID="REACT">
          <Description>React phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_03">
        <Description>Operation 3</Description>
        <Phase ID="RECOVER_HCL">
          <Description>Recover Hcl phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_04">
        <Description>Operation 4</Description>
        <Phase ID="COOL">
          <Description>Cool phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_05">
        <Description>Operation 5</Description>
        <Phase ID="GRIND">
          <Description>Grind phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_06">
        <Description>Operation 6</Description>
        <Phase ID="PACKAGE">
          <Description>Package phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>
    </UnitProcedure>
  </MasterRecipe>

</BatchML>

**Key S88 Concepts:**
- **Process Cell**: The physical grouping containing all equipment for this process
- **Unit**: The major equipment that performs the synthesis
- **Equipment Modules**: Individual pieces of equipment (reactors, columns, etc.)
- **Unit Procedure**: The sequence of operations to produce the product
- **Phases**: The lowest level of procedural control (e.g., REACT, SEPARATE, PURIFY)

Key S88 Concepts:
• Process Cell: Physical grouping containing all equipment
• Unit: Major equipment performing synthesis
• Equipment Modules: Individual pieces (reactors, columns, etc.)
• Phases: Lowest level of procedural control (REACT, SEPARATE, etc.)

---

This Synthesis Module is part of the 100chemicals Olefinverbund — an integrated chemical production network designed for extraterrestrial civilization on Moon and Mars.
