Styrene

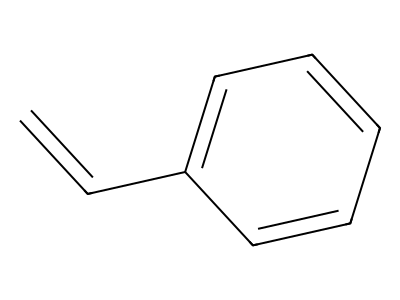

Molecular Structure

Molecular Details

Molecular Formula	C₈H₈ (C₆H₅CH=CH₂)
Molecular Weight	104.15 g/mol
State	Liquid at standard conditions

Olefinverbund Integration

Chemistry & Engineering

Reaction Equation	C₆H₅C₂H₅ → C₆H₅C₂H₃ + H₂
Thermodynamics	Highly endothermic (ΔH = +125 kJ/mol)
Catalyst System	Iron oxide promoted with Potassium (Fe2O3-K2CO3)
Reactor Class	Adiabatic radial flow reactors in series with interstage heating (steam superheating)
Process Considerations	Vacuum operation favored to shift equilibrium. Steam prevents coking and supplies heat.

Extraterrestrial Production Pattern

1. Alkylation of benzene with ethylene → ethylbenzene
2. Catalytic dehydrogenation at 600-650°C over Fe₂O₃/K₂O catalyst
3. Steam dilution to shift equilibrium and prevent coking
4. Vacuum distillation with polymerization inhibitor

Applications

• Polystyrene (packaging, insulation)
• ABS and SAN plastics
• Styrene-butadiene rubber
• Unsaturated polyester resins

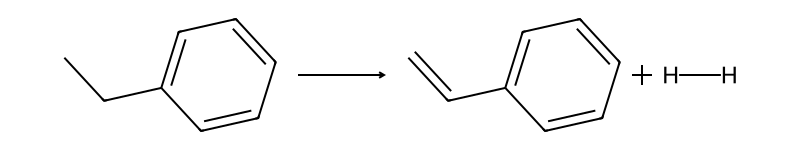

Reaction Diagram

Overall Reaction: C6H5C2H5 -> C6H5CH=CH2 + H2

Unit Operations

Process steps following chemical engineering unit operation principles:

Step	Operation	Description
1	Ethylbenzene Preheat	Heat EB feed to 550°C with steam
2	Dehydrogenation	Adiabatic reactor with Fe₂O₃/K₂O catalyst
3	Heat Recovery	Cool effluent against feed
4	Condensation	Condense styrene and separate from H₂
5	Vacuum Distillation	Distill at 50-100 mbar to avoid polymerization
6	Inhibitor Addition	Add TBC inhibitor for storage stability

S88 Batch Control Model

This module follows the ISA-88 (S88) batch control standard. Below is a simplified BatchML schema for educational purposes:

<?xml version="1.0" encoding="UTF-8"?>
<!-- ISA-88 Batch Control Model for Styrene -->
<!-- Educational schema - simplified for demonstration -->
<BatchML xmlns="http://www.wbf.org/xml/B2MML-V0600">

  <ProcessCell ID="STYRENE_PLANT_CELL">
    <Description>Process cell for Styrene production</Description>

    <Unit ID="STYRENE_PLANT">
      <Description>Main synthesis unit</Description>

      <!-- Equipment Modules -->
      <EquipmentModule ID="PREHEATER">
        <Description>Preheater</Description>
      </EquipmentModule>
      <EquipmentModule ID="REACTOR">
        <Description>Reactor</Description>
      </EquipmentModule>
      <EquipmentModule ID="EXCHANGER">
        <Description>Exchanger</Description>
      </EquipmentModule>
      <EquipmentModule ID="CONDENSER">
        <Description>Condenser</Description>
      </EquipmentModule>
      <EquipmentModule ID="VACUUM_COLUMN">
        <Description>Vacuum Column</Description>
      </EquipmentModule>
      <EquipmentModule ID="INHIBITOR_SYSTEM">
        <Description>Inhibitor System</Description>
      </EquipmentModule>
    </Unit>
  </ProcessCell>

  <MasterRecipe ID="STYRENE_PLANT_RECIPE">
    <Description>Master recipe for Styrene</Description>
    <ProductID>STYRENE</ProductID>

    <UnitProcedure ID="STYRENE_PLANT_UP">
      <Description>Unit procedure for synthesis</Description>

      <Operation ID="OP_01">
        <Description>Operation 1</Description>
        <Phase ID="PREHEAT">
          <Description>Preheat phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_02">
        <Description>Operation 2</Description>
        <Phase ID="DEHYDROGENATE">
          <Description>Dehydrogenate phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_03">
        <Description>Operation 3</Description>
        <Phase ID="RECOVER_HEAT">
          <Description>Recover Heat phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_04">
        <Description>Operation 4</Description>
        <Phase ID="CONDENSE">
          <Description>Condense phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_05">
        <Description>Operation 5</Description>
        <Phase ID="DISTILL">
          <Description>Distill phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_06">
        <Description>Operation 6</Description>
        <Phase ID="STABILIZE">
          <Description>Stabilize phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>
    </UnitProcedure>
  </MasterRecipe>

</BatchML>

**Key S88 Concepts:**
- **Process Cell**: The physical grouping containing all equipment for this process
- **Unit**: The major equipment that performs the synthesis
- **Equipment Modules**: Individual pieces of equipment (reactors, columns, etc.)
- **Unit Procedure**: The sequence of operations to produce the product
- **Phases**: The lowest level of procedural control (e.g., REACT, SEPARATE, PURIFY)

Key S88 Concepts:
• Process Cell: Physical grouping containing all equipment
• Unit: Major equipment performing synthesis
• Equipment Modules: Individual pieces (reactors, columns, etc.)
• Phases: Lowest level of procedural control (REACT, SEPARATE, etc.)

---

This Synthesis Module is part of the 100chemicals Olefinverbund — an integrated chemical production network designed for extraterrestrial civilization on Moon and Mars.
