Acetaldehyde

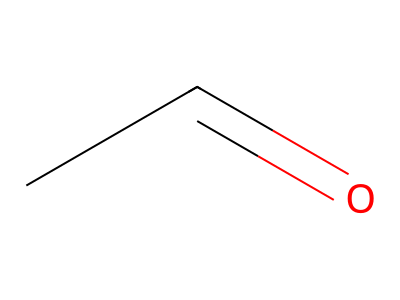

Molecular Structure

Molecular Details

Molecular Formula	CH₃CHO
Molecular Weight	44.05 g/mol
State	Liquid at standard conditions

Olefinverbund Integration

Chemistry & Engineering

Reaction Equation	C₂H₄ + 0.5 O₂ → CH₃CHO (Wacker Process)
Thermodynamics	Exothermic
Catalyst System	PdCl₂/CuCl₂ homogeneous system
Reactor Class	Bubble column (titanium lined)
Process Considerations	Regenerating Pd(0) to Pd(II) using CuCl₂ is key to the cycle.

Extraterrestrial Production Pattern

1. Wacker process: ethylene + O₂ over PdCl₂/CuCl₂ catalyst
2. Operating at 120-130°C and 3-10 bar
3. Direct oxidation in aqueous medium
4. Distillation for purification

Applications

• Acetic acid production (oxidation)
• Pyridine synthesis
• Pentaerythritol production
• Flavoring and fragrance chemicals

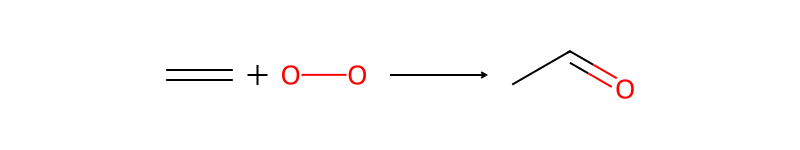

Reaction Diagram

Overall Reaction: C2H4 + 1/2 O2 -> CH3CHO

Unit Operations

Process steps following chemical engineering unit operation principles:

Step	Operation	Description
1	Ethylene Feed	Compress ethylene to reactor pressure 3-10 bar
2	Wacker Oxidation	PdCl₂/CuCl₂ catalyst in aqueous solution at 120-130°C
3	Gas-Liquid Separation	Flash separation of acetaldehyde vapor
4	Condensation	Condense acetaldehyde from reaction gas
5	Purification	Distill to remove water and heavy ends
6	Storage	Store under nitrogen at low temperature

S88 Batch Control Model

This module follows the ISA-88 (S88) batch control standard. Below is a simplified BatchML schema for educational purposes:

<?xml version="1.0" encoding="UTF-8"?>
<!-- ISA-88 Batch Control Model for Acetaldehyde -->
<!-- Educational schema - simplified for demonstration -->
<BatchML xmlns="http://www.wbf.org/xml/B2MML-V0600">

  <ProcessCell ID="ACETALDEHYDE_WACKER_CELL">
    <Description>Process cell for Acetaldehyde production</Description>

    <Unit ID="ACETALDEHYDE_WACKER">
      <Description>Main synthesis unit</Description>

      <!-- Equipment Modules -->
      <EquipmentModule ID="COMPRESSOR">
        <Description>Compressor</Description>
      </EquipmentModule>
      <EquipmentModule ID="REACTOR">
        <Description>Reactor</Description>
      </EquipmentModule>
      <EquipmentModule ID="FLASH_DRUM">
        <Description>Flash Drum</Description>
      </EquipmentModule>
      <EquipmentModule ID="CONDENSER">
        <Description>Condenser</Description>
      </EquipmentModule>
      <EquipmentModule ID="COLUMN">
        <Description>Column</Description>
      </EquipmentModule>
      <EquipmentModule ID="STORAGE_TANK">
        <Description>Storage Tank</Description>
      </EquipmentModule>
    </Unit>
  </ProcessCell>

  <MasterRecipe ID="ACETALDEHYDE_WACKER_RECIPE">
    <Description>Master recipe for Acetaldehyde</Description>
    <ProductID>ACETALDEHYDE</ProductID>

    <UnitProcedure ID="ACETALDEHYDE_WACKER_UP">
      <Description>Unit procedure for synthesis</Description>

      <Operation ID="OP_01">
        <Description>Operation 1</Description>
        <Phase ID="FEED">
          <Description>Feed phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_02">
        <Description>Operation 2</Description>
        <Phase ID="OXIDIZE">
          <Description>Oxidize phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_03">
        <Description>Operation 3</Description>
        <Phase ID="FLASH">
          <Description>Flash phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_04">
        <Description>Operation 4</Description>
        <Phase ID="CONDENSE">
          <Description>Condense phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_05">
        <Description>Operation 5</Description>
        <Phase ID="PURIFY">
          <Description>Purify phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_06">
        <Description>Operation 6</Description>
        <Phase ID="STORE">
          <Description>Store phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>
    </UnitProcedure>
  </MasterRecipe>

</BatchML>

**Key S88 Concepts:**
- **Process Cell**: The physical grouping containing all equipment for this process
- **Unit**: The major equipment that performs the synthesis
- **Equipment Modules**: Individual pieces of equipment (reactors, columns, etc.)
- **Unit Procedure**: The sequence of operations to produce the product
- **Phases**: The lowest level of procedural control (e.g., REACT, SEPARATE, PURIFY)

Key S88 Concepts:
