Acetic Acid

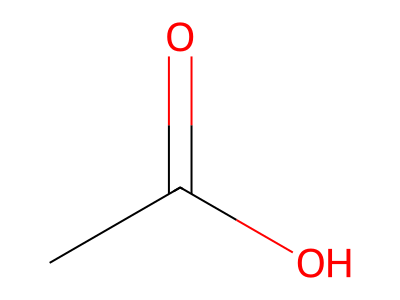

Molecular Structure

Molecular Details

Molecular Formula	CH₃COOH
Molecular Weight	60.05 g/mol
State	Liquid at standard conditions

Olefinverbund Integration

Chemistry & Engineering

Reaction Equation	CH₃OH + CO → CH₃COOH (Cativa Process)
Thermodynamics	Exothermic carbonylation
Catalyst System	Iridium/Ruthenium (Cativa) or Rhodium (Monsanto)
Reactor Class	Stirred tank reactor at 30-60 bar
Process Considerations	Corrosive environment requires Hastelloy or Zirconium equipment.

Extraterrestrial Production Pattern

1. Methanol + CO carbonylation over Rh or Ir catalyst
2. Operating at 150-200°C and 30-60 bar
3. Homogeneous catalysis with iodide promoter
4. Distillation and purification

Applications

• Vinyl acetate monomer (VAM)
• Acetate esters (ethyl acetate, butyl acetate)
• Cellulose acetate fibers
• Food preservative (vinegar)

Reaction Diagram

Overall Reaction: CH3OH + CO -> CH3COOH

Unit Operations

Process steps following chemical engineering unit operation principles:

Step	Operation	Description
1	Methanol Feed	Pump methanol to reactor pressure (30-60 bar)
2	CO Compression	Compress carbon monoxide to reaction pressure
3	Carbonylation	Rh-catalyzed reaction at 150-200°C (Monsanto/Cativa)
4	Flash Separation	Flash to remove light ends and recycle catalyst
5	Dehydration	Remove water from crude acetic acid
6	Purification	Distill to glacial acetic acid (>99.5%)

S88 Batch Control Model

This module follows the ISA-88 (S88) batch control standard. Below is a simplified BatchML schema for educational purposes:

<?xml version="1.0" encoding="UTF-8"?>
<!-- ISA-88 Batch Control Model for Acetic Acid -->
<!-- Educational schema - simplified for demonstration -->
<BatchML xmlns="http://www.wbf.org/xml/B2MML-V0600">

  <ProcessCell ID="ACETIC_ACID_PLANT_CELL">
    <Description>Process cell for Acetic Acid production</Description>

    <Unit ID="ACETIC_ACID_PLANT">
      <Description>Main synthesis unit</Description>

      <!-- Equipment Modules -->
      <EquipmentModule ID="PUMP">
        <Description>Pump</Description>
      </EquipmentModule>
      <EquipmentModule ID="COMPRESSOR">
        <Description>Compressor</Description>
      </EquipmentModule>
      <EquipmentModule ID="REACTOR">
        <Description>Reactor</Description>
      </EquipmentModule>
      <EquipmentModule ID="FLASH_DRUM">
        <Description>Flash Drum</Description>
      </EquipmentModule>
      <EquipmentModule ID="DRYING_COLUMN">
        <Description>Drying Column</Description>
      </EquipmentModule>
      <EquipmentModule ID="PRODUCT_COLUMN">
        <Description>Product Column</Description>
      </EquipmentModule>
    </Unit>
  </ProcessCell>

  <MasterRecipe ID="ACETIC_ACID_PLANT_RECIPE">
    <Description>Master recipe for Acetic Acid</Description>
    <ProductID>ACETIC_ACID</ProductID>

    <UnitProcedure ID="ACETIC_ACID_PLANT_UP">
      <Description>Unit procedure for synthesis</Description>

      <Operation ID="OP_01">
        <Description>Operation 1</Description>
        <Phase ID="FEED">
          <Description>Feed phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_02">
        <Description>Operation 2</Description>
        <Phase ID="COMPRESS">
          <Description>Compress phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_03">
        <Description>Operation 3</Description>
        <Phase ID="REACT">
          <Description>React phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_04">
        <Description>Operation 4</Description>
        <Phase ID="FLASH">
          <Description>Flash phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_05">
        <Description>Operation 5</Description>
        <Phase ID="DEHYDRATE">
          <Description>Dehydrate phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_06">
        <Description>Operation 6</Description>
        <Phase ID="PURIFY">
          <Description>Purify phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>
    </UnitProcedure>
  </MasterRecipe>

</BatchML>

**Key S88 Concepts:**
- **Process Cell**: The physical grouping containing all equipment for this process
- **Unit**: The major equipment that performs the synthesis
- **Equipment Modules**: Individual pieces of equipment (reactors, columns, etc.)
- **Unit Procedure**: The sequence of operations to produce the product
- **Phases**: The lowest level of procedural control (e.g., REACT, SEPARATE, PURIFY)

Key S88 Concepts:
• Process Cell: Physical grouping containing all equipment
• Unit: Major equipment performing synthesis
• Equipment Modules: Individual pieces (reactors, columns, etc.)
• Phases: Lowest level of procedural control (REACT, SEPARATE, etc.)

---

This Synthesis Module is part of the 100chemicals Olefinverbund — an integrated chemical production network designed for extraterrestrial civilization on Moon and Mars.
