Hydrogen Peroxide

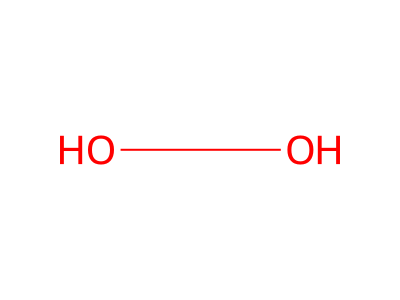

Molecular Structure

Molecular Details

Molecular Formula	H₂O₂
Molecular Weight	34.01 g/mol
State	Liquid at standard conditions

Olefinverbund Integration

Chemistry & Engineering

Reaction Equation	Anthraquinone Auto-oxidation (AO) Loop
Thermodynamics	Overall H₂ + O₂ → H₂O₂ is exothermic
Catalyst System	Palladium (hydrogenation step)
Reactor Class	Hydrogenator (Fluidized/Fixed) and Oxidizer (Bubble column)
Process Considerations	AO working solution is recycled.

Extraterrestrial Production Pattern

1. Anthraquinone process: hydrogenation → oxidation cycle
2. H₂ + anthraquinone → hydroquinone (Pd catalyst)
3. Hydroquinone + O₂ → anthraquinone + H₂O₂
4. Extraction, purification, and concentration

Applications

• Pulp and paper bleaching
• Chemical synthesis oxidizer
• Water treatment
• Rocket propellant (high concentration)

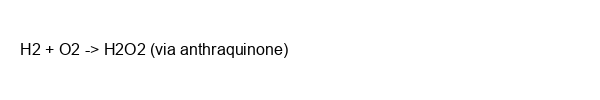

Reaction Diagram

Overall Reaction: H2 + O2 -> H2O2 (via anthraquinone)

Unit Operations

Process steps following chemical engineering unit operation principles:

Step	Operation	Description
1	Working Solution Prep	Dissolve ethylanthraquinone in organic solvent
2	Hydrogenation	Pd catalyst, reduce EAQ to EAQH₂
3	Filtration	Remove catalyst from working solution
4	Oxidation	Air oxidation of EAQH₂ to EAQ + H₂O₂
5	Extraction	Extract H₂O₂ into water
6	Concentration	Vacuum distillation to 35-70% H₂O₂

S88 Batch Control Model

This module follows the ISA-88 (S88) batch control standard. Below is a simplified BatchML schema for educational purposes:

<?xml version="1.0" encoding="UTF-8"?>
<!-- ISA-88 Batch Control Model for Hydrogen Peroxide -->
<!-- Educational schema - simplified for demonstration -->
<BatchML xmlns="http://www.wbf.org/xml/B2MML-V0600">

  <ProcessCell ID="H2O2_PLANT_CELL">
    <Description>Process cell for Hydrogen Peroxide production</Description>

    <Unit ID="H2O2_PLANT">
      <Description>Main synthesis unit</Description>

      <!-- Equipment Modules -->
      <EquipmentModule ID="WS_TANK">
        <Description>Ws Tank</Description>
      </EquipmentModule>
      <EquipmentModule ID="HYDROGENATOR">
        <Description>Hydrogenator</Description>
      </EquipmentModule>
      <EquipmentModule ID="FILTER">
        <Description>Filter</Description>
      </EquipmentModule>
      <EquipmentModule ID="OXIDIZER">
        <Description>Oxidizer</Description>
      </EquipmentModule>
      <EquipmentModule ID="EXTRACTOR">
        <Description>Extractor</Description>
      </EquipmentModule>
      <EquipmentModule ID="EVAPORATOR">
        <Description>Evaporator</Description>
      </EquipmentModule>
    </Unit>
  </ProcessCell>

  <MasterRecipe ID="H2O2_PLANT_RECIPE">
    <Description>Master recipe for Hydrogen Peroxide</Description>
    <ProductID>HYDROGEN_PEROXIDE</ProductID>

    <UnitProcedure ID="H2O2_PLANT_UP">
      <Description>Unit procedure for synthesis</Description>

      <Operation ID="OP_01">
        <Description>Operation 1</Description>
        <Phase ID="PREP_WS">
          <Description>Prep Ws phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_02">
        <Description>Operation 2</Description>
        <Phase ID="HYDROGENATE">
          <Description>Hydrogenate phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_03">
        <Description>Operation 3</Description>
        <Phase ID="FILTER">
          <Description>Filter phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_04">
        <Description>Operation 4</Description>
        <Phase ID="OXIDIZE">
          <Description>Oxidize phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_05">
        <Description>Operation 5</Description>
        <Phase ID="EXTRACT">
          <Description>Extract phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_06">
        <Description>Operation 6</Description>
        <Phase ID="CONCENTRATE">
          <Description>Concentrate phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>
    </UnitProcedure>
  </MasterRecipe>

</BatchML>

**Key S88 Concepts:**
- **Process Cell**: The physical grouping containing all equipment for this process
- **Unit**: The major equipment that performs the synthesis
- **Equipment Modules**: Individual pieces of equipment (reactors, columns, etc.)
- **Unit Procedure**: The sequence of operations to produce the product
- **Phases**: The lowest level of procedural control (e.g., REACT, SEPARATE, PURIFY)

Key S88 Concepts:
• Process Cell: Physical grouping containing all equipment
• Unit: Major equipment performing synthesis
• Equipment Modules: Individual pieces (reactors, columns, etc.)
• Phases: Lowest level of procedural control (REACT, SEPARATE, etc.)

---

This Synthesis Module is part of the 100chemicals Olefinverbund — an integrated chemical production network designed for extraterrestrial civilization on Moon and Mars.
