Methanol

Molecular Structure

Molecular Details

Molecular Formula	CH₃OH
Molecular Weight	32.04 g/mol
State	Liquid at standard conditions

Olefinverbund Integration

Chemistry & Engineering

Reaction Equation	CO₂ + 3H₂ ⇄ CH₃OH + H₂O
Thermodynamics	Exothermic (-49 kJ/mol), favored by high pressure, low temp
Catalyst System	Cu/ZnO/Al₂O₃
Reactor Class	Gas-cooled tubular reactor or Lurgi tube process at 50-100 bar, 250°C
Process Considerations	The ‚Universal Solvent‘ and carbon source for ISRU. Water byproduct must be recycled to electrolysis.

Extraterrestrial Production Pattern

1. Capture CO₂ from Martian atmosphere (95% CO₂) or other sources
2. Generate H₂ via water electrolysis
3. Catalytic hydrogenation: CO₂ + 3H₂ → CH₃OH + H₂O
4. Distillation for purification

Applications

• Fuel and fuel additive
• Formaldehyde production
• Acetic acid synthesis
• Methanol-to-Olefins (MTO) process
• Solvent for chemical processes

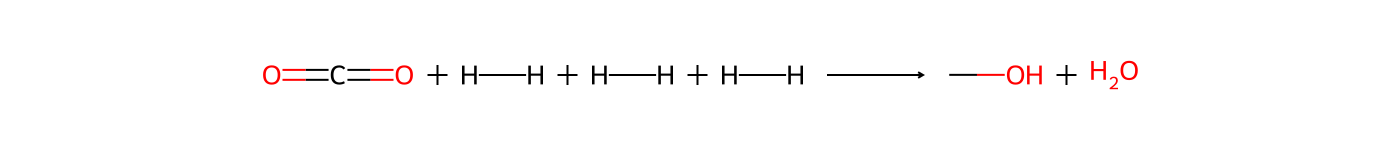

Reaction Diagram

Overall Reaction: CO2 + 3H2 -> CH3OH + H2O

Unit Operations

Process steps following chemical engineering unit operation principles:

Step	Operation	Description
1	Feed Mixing	Combine CO₂ and H₂ in stoichiometric ratio (1:3)
2	Compression	Compress mixed feed to 50-100 bar
3	Catalytic Reaction	Fixed-bed reactor with Cu/ZnO/Al₂O₃ catalyst at 200-300°C
4	Condensation	Cool reactor effluent to condense methanol and water
5	Distillation	Separate methanol from water and light ends
6	Purification	Final distillation to >99.5% methanol purity

S88 Batch Control Model

This module follows the ISA-88 (S88) batch control standard. Below is a simplified BatchML schema for educational purposes:

<?xml version="1.0" encoding="UTF-8"?>
<!-- ISA-88 Batch Control Model for Methanol -->
<!-- Educational schema - simplified for demonstration -->
<BatchML xmlns="http://www.wbf.org/xml/B2MML-V0600">

  <ProcessCell ID="METHANOL_SYNTHESIS_CELL">
    <Description>Process cell for Methanol production</Description>

    <Unit ID="METHANOL_SYNTHESIS">
      <Description>Main synthesis unit</Description>

      <!-- Equipment Modules -->
      <EquipmentModule ID="MIXER">
        <Description>Mixer</Description>
      </EquipmentModule>
      <EquipmentModule ID="COMPRESSOR">
        <Description>Compressor</Description>
      </EquipmentModule>
      <EquipmentModule ID="REACTOR">
        <Description>Reactor</Description>
      </EquipmentModule>
      <EquipmentModule ID="CONDENSER">
        <Description>Condenser</Description>
      </EquipmentModule>
      <EquipmentModule ID="DISTILLATION_COLUMN">
        <Description>Distillation Column</Description>
      </EquipmentModule>
      <EquipmentModule ID="STORAGE">
        <Description>Storage</Description>
      </EquipmentModule>
    </Unit>
  </ProcessCell>

  <MasterRecipe ID="METHANOL_SYNTHESIS_RECIPE">
    <Description>Master recipe for Methanol</Description>
    <ProductID>METHANOL</ProductID>

    <UnitProcedure ID="METHANOL_SYNTHESIS_UP">
      <Description>Unit procedure for synthesis</Description>

      <Operation ID="OP_01">
        <Description>Operation 1</Description>
        <Phase ID="MIX_FEED">
          <Description>Mix Feed phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_02">
        <Description>Operation 2</Description>
        <Phase ID="COMPRESS">
          <Description>Compress phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_03">
        <Description>Operation 3</Description>
        <Phase ID="REACT">
          <Description>React phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_04">
        <Description>Operation 4</Description>
        <Phase ID="CONDENSE">
          <Description>Condense phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_05">
        <Description>Operation 5</Description>
        <Phase ID="DISTILL">
          <Description>Distill phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_06">
        <Description>Operation 6</Description>
        <Phase ID="PURIFY">
          <Description>Purify phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>
    </UnitProcedure>
  </MasterRecipe>

</BatchML>

**Key S88 Concepts:**
- **Process Cell**: The physical grouping containing all equipment for this process
- **Unit**: The major equipment that performs the synthesis
- **Equipment Modules**: Individual pieces of equipment (reactors, columns, etc.)
- **Unit Procedure**: The sequence of operations to produce the product
- **Phases**: The lowest level of procedural control (e.g., REACT, SEPARATE, PURIFY)

Key S88 Concepts:
• Process Cell: Physical grouping containing all equipment
• Unit: Major equipment performing synthesis
• Equipment Modules: Individual pieces (reactors, columns, etc.)
• Phases: Lowest level of procedural control (REACT, SEPARATE, etc.)

---

This Synthesis Module is part of the 100chemicals Olefinverbund — an integrated chemical production network designed for extraterrestrial civilization on Moon and Mars.
