Polyethylene

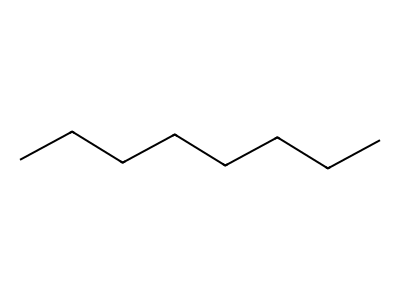

Molecular Structure

Molecular Details

Molecular Formula	(C₂H₄)ₙ
Molecular Weight	Variable (typically 10,000 – 6,000,000 g/mol)
State	Solid at standard conditions

Olefinverbund Integration

Chemistry & Engineering

Reaction Equation	n C₂H₄ → -(CH₂-CH₂)-n
Thermodynamics	Exothermic polymerization
Catalyst System	Ziegler-Natta (Ti/Mg) or Metallocene or Chromium
Reactor Class	Gas phase fluidized bed (Unipol) or Slurry loop
Process Considerations	Grades (HDPE/LLDPE) determined by comonomer (butene/hexene).

Extraterrestrial Production Pattern

1. Source ethylene from local Fischer-Tropsch production
2. Polymerization using Ziegler-Natta or metallocene catalysts
3. Control conditions for desired density (LDPE, HDPE, LLDPE)
4. Extrusion or molding into final products

Applications

• Habitat construction materials
• Pipes and tubing
• Containers and storage
• Insulation
• Protective equipment
• 3D printing feedstock

Reaction Diagram

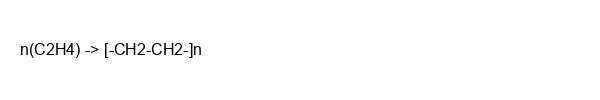

Overall Reaction: n(C2H4) -> [-CH2-CH2-]n

Unit Operations

Process steps following chemical engineering unit operation principles:

Step	Operation	Description
1	Ethylene Purification	Remove trace impurities (H₂O, O₂, acetylene)
2	Catalyst Preparation	Prepare Ziegler-Natta or metallocene catalyst slurry
3	Polymerization	Slurry/gas-phase reactor at 70-100°C, 10-40 bar
4	Degassing	Remove unreacted ethylene from polymer
5	Pelletizing	Extrude and cut polymer into pellets
6	Drying	Remove residual moisture from pellets

S88 Batch Control Model

This module follows the ISA-88 (S88) batch control standard. Below is a simplified BatchML schema for educational purposes:

<?xml version="1.0" encoding="UTF-8"?>
<!-- ISA-88 Batch Control Model for Polyethylene -->
<!-- Educational schema - simplified for demonstration -->
<BatchML xmlns="http://www.wbf.org/xml/B2MML-V0600">

  <ProcessCell ID="PE_POLYMERIZATION_CELL">
    <Description>Process cell for Polyethylene production</Description>

    <Unit ID="PE_POLYMERIZATION">
      <Description>Main synthesis unit</Description>

      <!-- Equipment Modules -->
      <EquipmentModule ID="PURIFIER">
        <Description>Purifier</Description>
      </EquipmentModule>
      <EquipmentModule ID="CATALYST_TANK">
        <Description>Catalyst Tank</Description>
      </EquipmentModule>
      <EquipmentModule ID="REACTOR">
        <Description>Reactor</Description>
      </EquipmentModule>
      <EquipmentModule ID="DEGASSER">
        <Description>Degasser</Description>
      </EquipmentModule>
      <EquipmentModule ID="EXTRUDER">
        <Description>Extruder</Description>
      </EquipmentModule>
      <EquipmentModule ID="DRYER">
        <Description>Dryer</Description>
      </EquipmentModule>
    </Unit>
  </ProcessCell>

  <MasterRecipe ID="PE_POLYMERIZATION_RECIPE">
    <Description>Master recipe for Polyethylene</Description>
    <ProductID>POLYETHYLENE</ProductID>

    <UnitProcedure ID="PE_POLYMERIZATION_UP">
      <Description>Unit procedure for synthesis</Description>

      <Operation ID="OP_01">
        <Description>Operation 1</Description>
        <Phase ID="PURIFY_FEED">
          <Description>Purify Feed phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_02">
        <Description>Operation 2</Description>
        <Phase ID="PREP_CATALYST">
          <Description>Prep Catalyst phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_03">
        <Description>Operation 3</Description>
        <Phase ID="POLYMERIZE">
          <Description>Polymerize phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_04">
        <Description>Operation 4</Description>
        <Phase ID="DEGAS">
          <Description>Degas phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_05">
        <Description>Operation 5</Description>
        <Phase ID="PELLETIZE">
          <Description>Pelletize phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_06">
        <Description>Operation 6</Description>
        <Phase ID="DRY">
          <Description>Dry phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>
    </UnitProcedure>
  </MasterRecipe>

</BatchML>

**Key S88 Concepts:**
- **Process Cell**: The physical grouping containing all equipment for this process
- **Unit**: The major equipment that performs the synthesis
- **Equipment Modules**: Individual pieces of equipment (reactors, columns, etc.)
- **Unit Procedure**: The sequence of operations to produce the product
- **Phases**: The lowest level of procedural control (e.g., REACT, SEPARATE, PURIFY)

Key S88 Concepts:
• Process Cell: Physical grouping containing all equipment
• Unit: Major equipment performing synthesis
• Equipment Modules: Individual pieces (reactors, columns, etc.)
• Phases: Lowest level of procedural control (REACT, SEPARATE, etc.)

---

This Synthesis Module is part of the 100chemicals Olefinverbund — an integrated chemical production network designed for extraterrestrial civilization on Moon and Mars.
