Polystyrene

Molecular Structure

Molecular Details

Molecular Formula	(C₈H₈)ₙ
Molecular Weight	Variable (polymer)
State	Solid at standard conditions

Olefinverbund Integration

Chemistry & Engineering

Reaction Equation	Radical polymerization
Thermodynamics	Exothermic
Catalyst System	Thermal initiation or Peroxides
Reactor Class	Continuous Stirred Tank + Tower
Process Considerations	Easy to process, hard to recycle (monomer recovery possible).

Extraterrestrial Production Pattern

1. Styrene purification to polymer grade
2. Bulk or suspension polymerization
3. Thermal or peroxide initiation at 100-180°C
4. Devolatilization and pelletization

Applications

• Expanded polystyrene (EPS) insulation
• Food packaging (cups, containers)
• Electronics housings
• Disposable cutlery

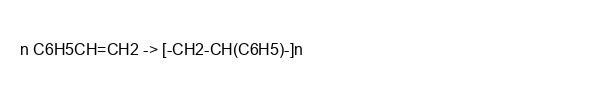

Reaction Diagram

Overall Reaction: n C6H5CH=CH2 -> [-CH2-CH(C6H5)-]n

Unit Operations

Process steps following chemical engineering unit operation principles:

Step	Operation	Description
1	Styrene Purification	Remove inhibitor, dry styrene
2	Bulk Polymerization	Heat to 100-200°C with initiator
3	Devolatilization	Remove unreacted styrene under vacuum
4	Pelletizing	Extrude strand and cut to pellets
5	Blending	Add additives (stabilizers, flame retardants)
6	Packaging	Bag or bulk package

S88 Batch Control Model

This module follows the ISA-88 (S88) batch control standard. Below is a simplified BatchML schema for educational purposes:

<?xml version="1.0" encoding="UTF-8"?>
<!-- ISA-88 Batch Control Model for Polystyrene -->
<!-- Educational schema - simplified for demonstration -->
<BatchML xmlns="http://www.wbf.org/xml/B2MML-V0600">

  <ProcessCell ID="PS_PLANT_CELL">
    <Description>Process cell for Polystyrene production</Description>

    <Unit ID="PS_PLANT">
      <Description>Main synthesis unit</Description>

      <!-- Equipment Modules -->
      <EquipmentModule ID="PURIFIER">
        <Description>Purifier</Description>
      </EquipmentModule>
      <EquipmentModule ID="REACTOR">
        <Description>Reactor</Description>
      </EquipmentModule>
      <EquipmentModule ID="DEVOLATILIZER">
        <Description>Devolatilizer</Description>
      </EquipmentModule>
      <EquipmentModule ID="EXTRUDER">
        <Description>Extruder</Description>
      </EquipmentModule>
      <EquipmentModule ID="BLENDER">
        <Description>Blender</Description>
      </EquipmentModule>
      <EquipmentModule ID="PACKAGER">
        <Description>Packager</Description>
      </EquipmentModule>
    </Unit>
  </ProcessCell>

  <MasterRecipe ID="PS_PLANT_RECIPE">
    <Description>Master recipe for Polystyrene</Description>
    <ProductID>POLYSTYRENE</ProductID>

    <UnitProcedure ID="PS_PLANT_UP">
      <Description>Unit procedure for synthesis</Description>

      <Operation ID="OP_01">
        <Description>Operation 1</Description>
        <Phase ID="PURIFY">
          <Description>Purify phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_02">
        <Description>Operation 2</Description>
        <Phase ID="POLYMERIZE">
          <Description>Polymerize phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_03">
        <Description>Operation 3</Description>
        <Phase ID="DEVOLATILIZE">
          <Description>Devolatilize phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_04">
        <Description>Operation 4</Description>
        <Phase ID="PELLETIZE">
          <Description>Pelletize phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_05">
        <Description>Operation 5</Description>
        <Phase ID="BLEND">
          <Description>Blend phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>

      <Operation ID="OP_06">
        <Description>Operation 6</Description>
        <Phase ID="PACKAGE">
          <Description>Package phase</Description>
          <PhaseLogic>
            <Step ID="STEP_1"><Action>Initialize</Action></Step>
            <Step ID="STEP_2"><Action>Execute</Action></Step>
            <Step ID="STEP_3"><Action>Complete</Action></Step>
          </PhaseLogic>
        </Phase>
      </Operation>
    </UnitProcedure>
  </MasterRecipe>

</BatchML>

**Key S88 Concepts:**
- **Process Cell**: The physical grouping containing all equipment for this process
- **Unit**: The major equipment that performs the synthesis
- **Equipment Modules**: Individual pieces of equipment (reactors, columns, etc.)
- **Unit Procedure**: The sequence of operations to produce the product
- **Phases**: The lowest level of procedural control (e.g., REACT, SEPARATE, PURIFY)

Key S88 Concepts:
• Process Cell: Physical grouping containing all equipment
• Unit: Major equipment performing synthesis
• Equipment Modules: Individual pieces (reactors, columns, etc.)
• Phases: Lowest level of procedural control (REACT, SEPARATE, etc.)

---

This Synthesis Module is part of the 100chemicals Olefinverbund — an integrated chemical production network designed for extraterrestrial civilization on Moon and Mars.
