Sodium Chloride

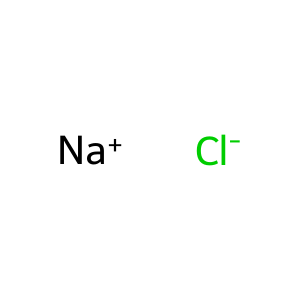

Molecular Structure

Molecular Details

Molecular Formula	NaCl
Molecular Weight	58.44 g/mol
State	Solid at standard conditions

Olefinverbund Integration

Chemistry & Engineering

Reaction Equation	Evaporation/Crystallization
Thermodynamics	Physical separation
Catalyst System	None
Reactor Class	Evaporator
Process Considerations	Feedstock salt.

Extraterrestrial Production Pattern

1. Solar evaporation of seawater/brine
2. Mining of rock salt deposits
3. Solution mining with evaporation
4. Purification for chemical-grade salt

Applications

• Chlor-alkali feedstock (Cl₂, NaOH)
• Soda ash production (Solvay)
• Food preservation
• De-icing

Reaction Diagram

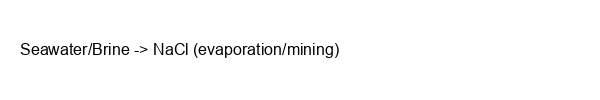

Overall Reaction: Seawater/Brine -> NaCl (evaporation/mining)

Unit Operations

Process steps following chemical engineering unit operation principles:

Step	Operation	Description
1	Brine Production	Solution mine or seawater intake
2	Purification	Remove Ca, Mg with Na₂CO₃/NaOH
3	Evaporation	Multiple-effect evaporators
4	Crystallization	Cool to crystallize NaCl
5	Centrifugation	Separate crystals from mother liquor
6	Drying	Dry in fluid-bed dryer

S88 Batch Control Model

This module follows the ISA-88 (S88) batch control standard. Below is a simplified BatchML schema for educational purposes:
